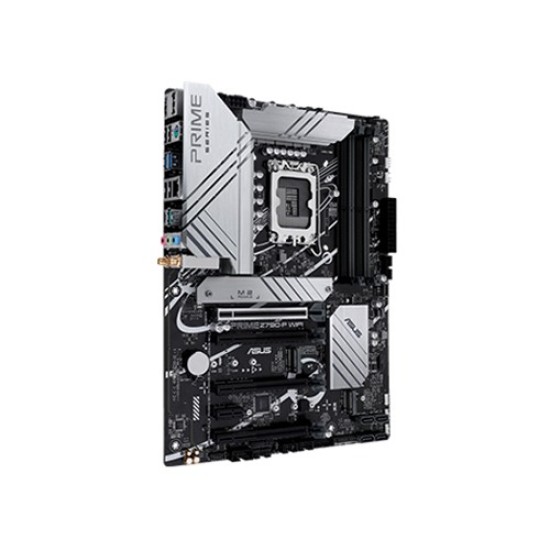

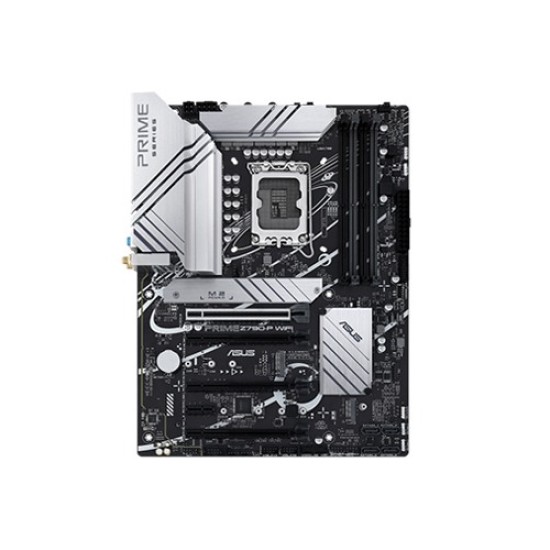

ASUS PRIME Z790-P WIFI-CSM DDR5 ATX Motherboard
The ASUS PRIME Z790-P WIFI-CSM DDR5 ATX Motherboard is a cutting-edge motherboard designed to support the latest generation of Intel processors, making it an excellent choice for enthusiasts and gamers seeking high-performance computing. This motherboard boasts a variety of features and capabilities that enhance your system's performance, connectivity, and customization options. At its core, the Z790-P supports Intel's LGA1700 socket, accommodating both 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold, and Celeron processors. It also supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, allowing your CPU to dynamically increase its clock speed for improved performance. The motherboard's ATX form factor provides ample space for your components and connectivity. It features PCIe slots, including one PCIe 5.0 x16 slot for graphics cards and three PCIe 4.0 x16 slots (with x4 mode support), allowing you to expand your system with multiple GPUs and high-speed NVMe SSDs. Additionally, it comes with four DIMM slots supporting DDR5 memory, with a maximum capacity of 192GB, ensuring your system has access to high-speed and ample memory. For graphics and display connectivity, the Z790-P offers one DisplayPort and one HDMI port, both capable of handling 4K resolution at 60Hz, providing immersive visuals for gaming and multimedia tasks. The onboard Wi-Fi 6 and Bluetooth 5.2 enable fast and reliable wireless connections. In terms of storage, this motherboard offers three M.2 slots and four SATA 6Gb/s ports, catering to high-speed storage needs. The Realtek 7.1 Surround Sound High Definition Audio CODEC delivers superior audio quality with features like jack detection and multi-streaming. Connectivity options are abundant, with a rear panel boasting various USB ports, including a USB 3.2 Gen 2x2 port and USB Type-C support. The motherboard also has front USB headers for additional ports, along with other internal headers for various peripherals and accessories. Notably, it features ASUS 5X PROTECTION III, which includes DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core+, and stainless-steel back I/O for enhanced reliability.
ASUS PRIME Z790-P WIFI-CSM Motherboard Features
- CPU Compatibility: The motherboard supports Intel Socket LGA1700, making it compatible with 13th Gen Intel Core processors, as well as 12th Gen Intel Core, Pentium Gold, and Celeron processors.
- Turbo Boost Technology: It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, which dynamically increase CPU performance when needed.
- BIOS: Equipped with a 192Mb (128+64) Flash ROM and UEFI AMI BIOS for easy system setup and customization.
- Form Factor: It features the ATX form factor, measuring 12 inches by 9.2 inches (30.5 cm x 23.4 cm), providing ample space for components and additional features.
- Expansion Slots: The motherboard offers versatile expansion options, including one PCIe 5.0 x16 slot for high-speed graphics cards and three PCIe 4.0 x16 slots (in x4 mode) for additional expansion cards, along with a PCIe 3.0 x1 slot.
- DDR5 Memory Support: The Z790-P supports DDR5 memory with four DIMM slots, a dual-channel memory architecture, and compatibility with Intel Extreme Memory Profile (XMP) for optimized memory performance. It also features OptiMem II for enhanced memory stability.
- Graphics: With one DisplayPort and one HDMI port, it supports 4K resolution at 60Hz, delivering sharp and vibrant visuals.
- Operating System Support: Compatible with Windows 11 and Windows 10 64-bit, ensuring seamless compatibility with the latest software.
- USB Connectivity: The rear panel provides a variety of USB ports, including USB 3.2 Gen 2x2 with a USB Type-C® connector, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports. The front panel also offers USB 3.2 Gen 2 and USB 3.2 Gen 1 headers for additional connectivity.
- Storage Options: The motherboard supports a total of three M.2 slots (Key M) and four SATA 6Gb/s ports, allowing for high-speed storage solutions. M.2 slots support PCIe 4.0 for rapid data transfer.
- Wireless Communication: Equipped with a Wi-Fi 6 module (802.11 A/B/G/N/Ac/Ax) and Bluetooth V5.2 for fast and reliable wireless connectivity.
- Audio Excellence: Features the Realtek 7.1 Surround Sound High Definition Audio CODEC with jack-detection, multi-streaming, and support for up to 24-bit/192kHz playback. It also includes audio shielding, premium audio capacitors, and dedicated audio PCB layers.
- Robust Internal I/O: The motherboard offers various headers for fan and cooling control, power delivery, storage, and USB connectivity.
- Back Panel Connectivity: It provides a comprehensive set of back panel connectors, including USB, DisplayPort, HDMI, Wi-Fi module, Realtek 2.5Gb Ethernet port, audio jacks, and a PS/2 keyboard/mouse combo port.
- Special Features: ASUS 5X PROTECTION III, DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core+, and stainless-steel back I/O enhance reliability. ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, and Aura Sync RGB headers contribute to system customizability and ease of use.
