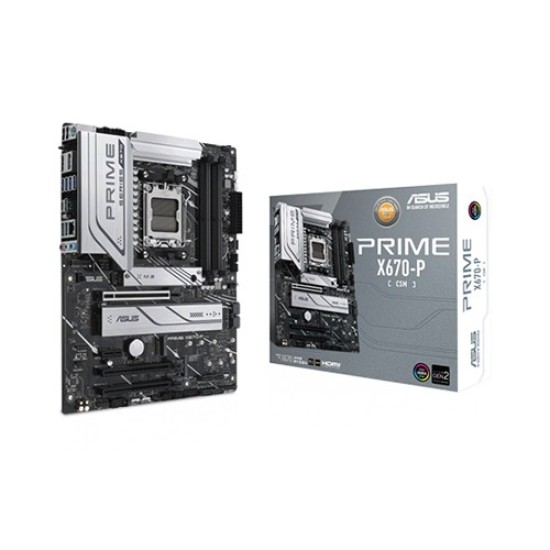

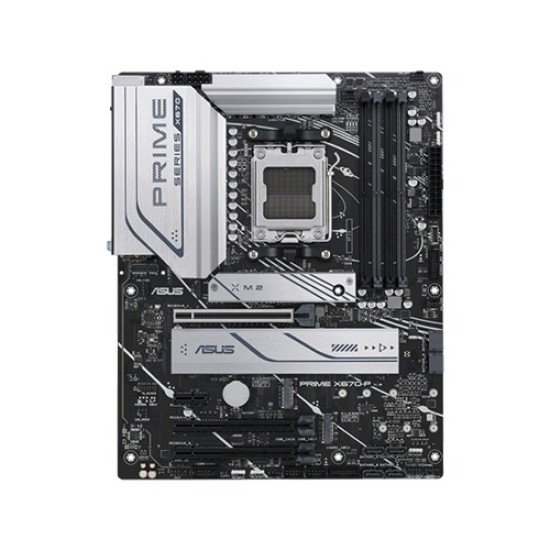

Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard
The Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard is a cutting-edge and high-performance motherboard designed to meet the demands of advanced computing enthusiasts and professionals. This motherboard is equipped with features that make it an ideal choice for AMD Ryzen 7000 Series Desktop Processors and offers a wealth of options for gamers, content creators, and power users. At the heart of this motherboard is the AMD X670 chipset, providing robust support for the latest AMD AM5 CPU socket. This platform offers seamless compatibility with AMD Ryzen 7000 Series Desktop Processors, ensuring exceptional processing power and efficiency for a wide range of applications. One standout feature of the Asus PRIME X670-P-CSM is its memory support. It features DDR5 memory slots with support for speeds up to an impressive 7600+ MHz (OC), offering exceptional data throughput and responsiveness. With a maximum memory capacity of 192GB, users can take full advantage of multitasking and memory-intensive tasks. The motherboard's expansion slots include a PCIe 4.0 X16 slot that supports X16 mode for AMD Ryzen 7000 Series Desktop Processors, as well as two PCIe 4.0 X16 slots that support X4 mode, and a PCIe 3.0 X1 slot for additional connectivity options. These slots allow for robust GPU and expansion card support, accommodating a variety of peripherals. In terms of connectivity, the Asus PRIME X670-P-CSM offers a comprehensive array of USB ports, including USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports. It also includes multiple M.2 slots and SATA 6Gb/s ports for versatile storage configurations. Audio enthusiasts will appreciate the Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports high-quality audio playback with features like jack-detection, multi-streaming, and front panel jack-retasking. Premium audio capacitors and dedicated audio PCB layers further enhance the overall audio experience. This ATX motherboard features ASUS 5X PROTECTION III for enhanced durability and protection, including DIGI+ VRM, ESD guards, LANGuard, overvoltage protection, Safeslot Core+, and stainless-steel back I/O. It also includes ASUS Q-Design elements for easy installation and maintenance and ASUS Thermal Solution with M.2 and VRM heatsinks for effective heat dissipation.
Asus PRIME X670-P-CSM DDR5 Motherboard Features
- CPU and Chipset Compatibility: Designed for AMD Socket AM5, the motherboard is optimized for AMD Ryzen 7000 Series Desktop Processors and is powered by the AMD X670 chipset, ensuring excellent CPU and system performance.
- BIOS: Equipped with a 256 Mb Flash ROM and UEFI AMI BIOS, enabling easy customization and configuration of system settings.
- Audio Excellence: Featuring the Realtek 7.1 Surround Sound High Definition Audio CODEC, the motherboard delivers high-quality audio with support for jack-detection, multi-streaming, and front panel jack-retasking. It supports up to 24-bit/192 KHz playback and includes audio shielding, premium audio capacitors, and dedicated audio PCB layers for an immersive audio experience.
- Form Factor: The ATX form factor of 12 inches by 9.6 inches (30.5 cm x 24.4 cm) provides ample space for component installation and expansion.
- Expansion Slots: The motherboard offers robust expansion options, including one PCIe 4.0 X16 slot (X16 mode) for AMD Ryzen 7000 Series CPUs and two PCIe 4.0 X16 slots (X4 mode) along with a PCIe 3.0 X1 slot for additional connectivity.
- Memory Support: It supports DDR5 memory with four DIMM slots, allowing for a maximum memory capacity of 192GB. The motherboard supports various DDR5 memory speeds, including overclocked options, and features dual-channel memory architecture, as well as support for AMD Extended Profiles for overclocking (EXPO™) and OptiMem II.

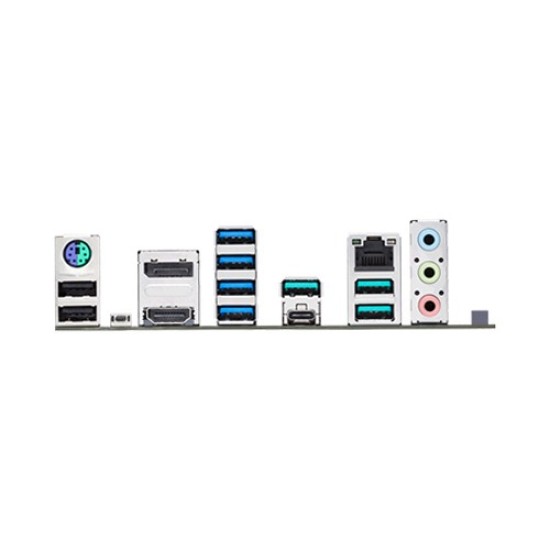

- Graphics Connectivity: Equipped with a DisplayPort and HDMI port for multiple display options, making it suitable for gaming and multimedia tasks.
- Operating System Compatibility: The motherboard is compatible with Windows 11 and Windows 10 64-bit operating systems.
- Storage Options: It supports three M.2 slots and six SATA 6Gb/s ports for versatile storage configurations, offering high-speed data access.
- USB Connectivity: The motherboard offers a range of USB ports, including USB 3.2 Gen 2x2 and USB 3.2 Gen 2 ports, ensuring high-speed data transfer capabilities. It also provides front USB options for added convenience.
- Enhanced Cooling: Featuring multiple fan headers for CPU and chassis cooling, as well as M.2 heatsinks and a VRM heatsink design for effective heat dissipation.
- Special Features: ASUS 5X PROTECTION III offers enhanced durability and protection, while ASUS Q-Design features like M.2 Q-Latch, Q-DIMM, Q-LED Core, and Q-Slot simplify installation and maintenance. It also includes ASUS EZ DIY features for user-friendly functionality.
- Bundled Software: The motherboard comes with ASUS-exclusive software, including Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, and more, allowing users to fine-tune system performance and RGB lighting.
