| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, <br>and 12th Generation Intel Core, <br>Pentium Gold and Celeron Processors<br>v L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, <br>WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Expansion Slots | |
| PCI | CPU:<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16<br> Chipset:<br> 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / <br>6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.1 version and HDCP 2.3.<br> Support native HDMI 2.1 TMDS compatible ports<br> (Graphics specifications may vary depending on CPU support.) |
| Ports Connector and Slots | |

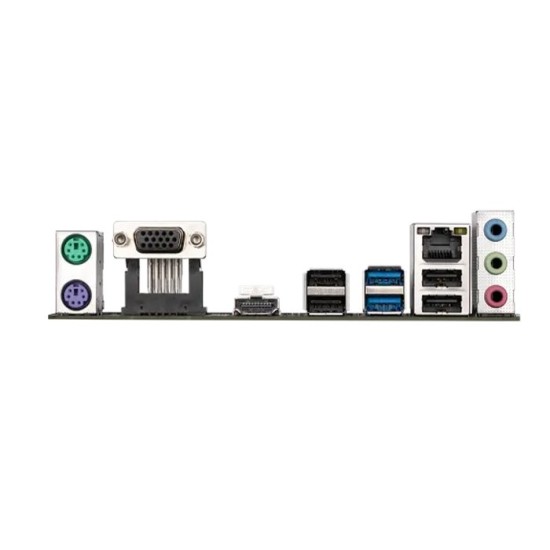

| D-Sub | 1x D-Sub port |
| Connector & Ports | |
| HDMI | 1x HDMI |
| USB (s) | Chipset:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, <br>2 ports available through the internal USB header)<br> 4 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset:<br> 1 x M.2 connector<br> (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors |
| Audio | 1 x front panel audio header<br> 2 x audio jacks |
| External I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x RGB LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header<br> (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for APP Center<br> Support for Q-Flash<br> Support for Xpress Install |
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software |
| Warranty Information | |
| Warranty | 3 years |

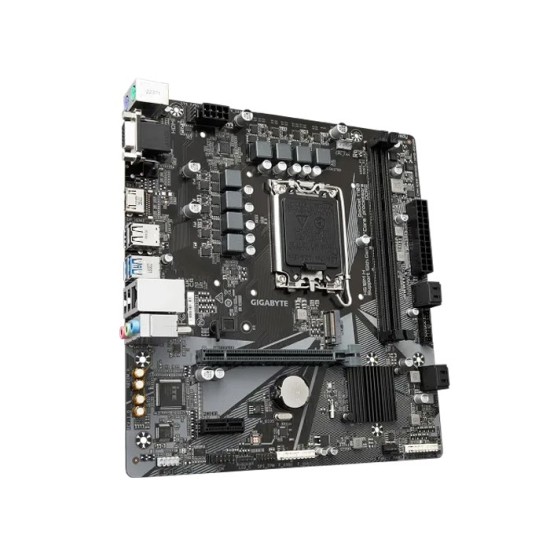

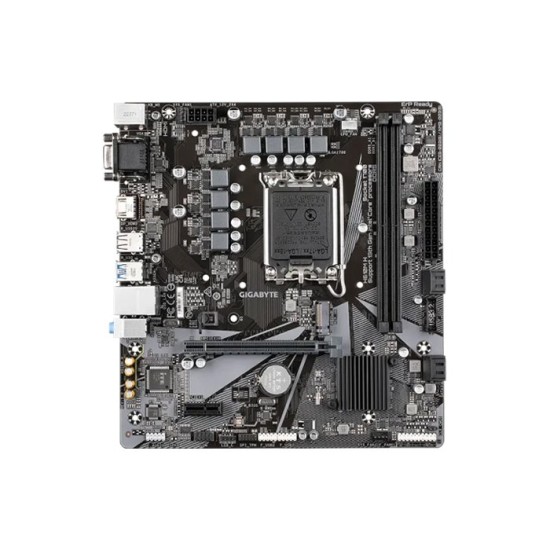

Discover the ultimate performance potential with the GIGABYTE H610M H DDR5 Micro ATX Motherboard. Engineered to support 12th, 13th, and 14th Gen Intel Core processors, it offers unparalleled power for computing tasks. The board’s DDR5 memory compatibility unlocks blazing speeds up to 7600 MT/s, ensuring seamless multitasking and data processing.Equipped with a PCIe 4.0 x16 slot and PCIe 3.0 x1 slot, this motherboard caters to enhanced graphics and expansion capabilities. Experience stunning visuals with integrated Intel HD Graphics support, offering a D-Sub port for 1920x1200@60 Hz and an HDMI port reaching up to 4096x2160@60 Hz (HDMI 2.1 with HDCP 2.3 support).Connectivity is seamless with USB 3.2 Gen 1 and USB 2.0/1.1 ports, along with Realtek GbE LAN ensuring high-speed networking. Storage options include an M.2 connector for PCIe 3.0 x4/x2 SSDs and four SATA 6Gb/s connectors.The board features an array of headers including USB 3.2 Gen 1, USB 2.0/1.1, RGB LED strip, and front panel audio, allowing customization and easy peripheral connectivity. With a 3-year warranty and bundled software like Norton Internet Security, this motherboard ensures both performance and security for your computing needs. Elevate your system's capabilities with this GIGABYTE motherboard, designed to exceed expectations and deliver uncompromised performance.
GIGABYTE H610M H motherboard, renowned for its versatility and performance, is available in Bangladesh at an affordable price range. Combining support for Intel's latest 12th, 13th, and 14th Gen Core processors with DDR5 memory compatibility, this motherboard offers exceptional value for its cost. Its capability to handle DDR5 memory modules clocked up to 7600 MT/s ensures faster data processing and multitasking, catering to various user needs.
In the Bangladeshi market, the GIGABYTE H610M H motherboard maintains a competitive price, making it an attractive choice for budget-conscious users seeking reliability and performance. With features like PCIe 4.0 x16 slot, integrated Intel HD Graphics with HDMI 2.1 support, USB connectivity, and Realtek GbE LAN, this motherboard provides a comprehensive package for users across different computing requirements.Given its price point and the array of features it offers, the GIGABYTE H610M H motherboard stands as a compelling option in the Bangladeshi market, delivering a balance of affordability and performance for users building or upgrading their systems.
