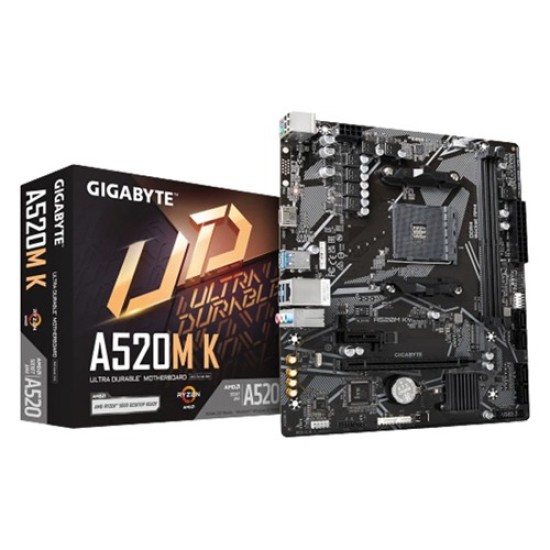

GIGABYTE A520M K AMD AM4 Micro ATX Motherboard
The GIGABYTE A520M K is a compact and feature-rich AMD AM4 Micro ATX motherboard designed to meet the needs of budget-conscious users while offering essential performance and compatibility for a wide range of applications. With a focus on memory support, CPU compatibility, expansion options, and essential connectivity, this motherboard provides a solid foundation for building a cost-effective and versatile computer system. In terms of memory support, the A520M K offers two DIMM slots compatible with DDR4 memory modules, with support for speeds up to DDR4 5100MHz (when overclocked). It also features dual-channel memory architecture, accommodating up to 64 GB of RAM in total. Users can take advantage of Extreme Memory Profile (XMP) for easy memory overclocking. Additionally, the motherboard supports ECC Un-buffered DIMM modules, providing reliability and stability for professional workloads. The A520M K is equipped with the AMD A520 chipset and is compatible with a variety of AMD processors, including the Ryzen™ 5000 G-Series, Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, and Ryzen™ 3000 Series processors. The motherboard features a single PCIe 3.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional expansion cards. Connectivity options are well-rounded, with 4 USB 3.2 Gen 1 ports, 2 USB 3.2 Gen 1 ports via an internal header, and 6 USB 2.0/1.1 ports for peripherals and external devices. It also includes a Realtek GbE LAN chip, providing reliable 1 Gbps/100 Mbps Ethernet connectivity. For storage needs, there's an M.2 connector for high-speed SSDs and 4 SATA 6Gb/s connectors with support for RAID 0, 1, and 10 configurations. The motherboard offers excellent audio quality with its Realtek Audio CODEC, supporting high-definition audio in 2/4/5.1/7.1-channel setups. The integrated graphics processor supports a maximum resolution of 4096x2160@60Hz via an HDMI port, making it suitable for multimedia applications and basic gaming.
GIGABYTE A520M K Motherboard Features
- Memory Support: The motherboard supports DDR4 memory with two DIMM slots, enabling a maximum memory capacity of 64GB. It's compatible with various memory speeds, including overclocked options, for improved multitasking and system responsiveness.
- CPU Compatibility: This motherboard is compatible with AMD Socket AM4 processors, including the AMD Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series processors. This provides users with flexibility when selecting a compatible CPU for their system.
- Chipset: The motherboard is based on the AMD A520 chipset, offering a reliable foundation for general computing tasks and moderate gaming.
- Audio Quality: Equipped with a Realtek Audio CODEC, it supports High Definition Audio with options for 2/4/5.1/7.1-channel audio, ensuring clear and immersive sound quality for multimedia and gaming.
- Form Factor: With a Micro ATX form factor (23.3cm x 19.8cm), it's compact and suitable for smaller PC cases while still accommodating essential components.
- Graphics: The A520M K features an integrated graphics processor with an HDMI port that supports a maximum resolution of 4096x2160@60Hz. This is convenient for users who don't require a dedicated graphics card.
- Expansion Slots: The motherboard includes a PCI Express x16 slot for a dedicated graphics card, running at PCIe 3.0 x16 speed. Additionally, there is a PCIe x1 slot for additional expansion cards.

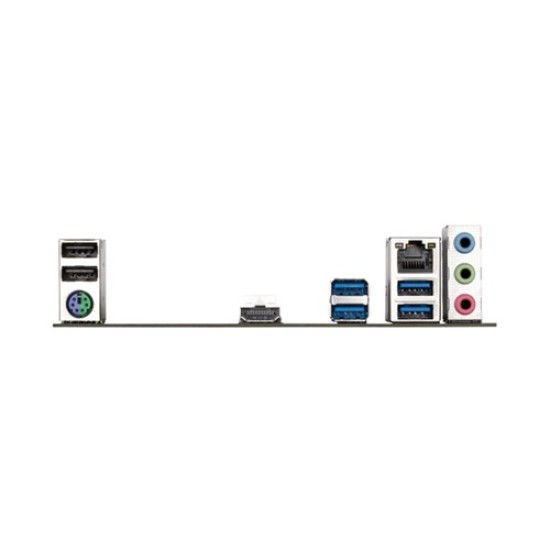

- Connectivity: It provides a range of USB ports, including USB 3.2 Gen 1 and USB 2.0/1.1 options. The motherboard also features a Realtek GbE LAN chip for reliable wired network connectivity.
- Storage Options: It supports storage devices through one M.2 connector and four SATA 6Gb/s connectors. RAID 0, RAID 1, and RAID 10 are supported for data protection and performance optimization.
- BIOS and Software: The motherboard is equipped with licensed AMI UEFI BIOS with features like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, making system configuration straightforward. Additionally, bundled software includes Norton Internet Security (OEM version) and LAN bandwidth management software.
- Warranty: GIGABYTE provides a 3-year warranty for this motherboard, ensuring long-term reliability and peace of mind for users.
