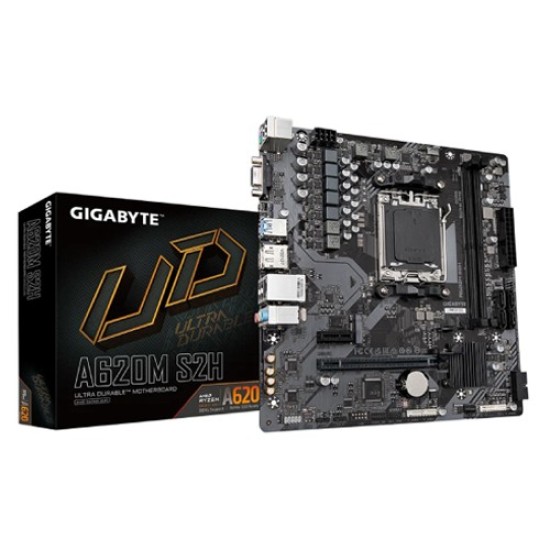

GIGABYTE A620M S2H DDR5 AMD AM5 Micro-ATX Motherboard
The GIGABYTE A620M S2H is a DDR5 AMD AM5 Micro-ATX Motherboard designed to provide a solid foundation for your AMD Ryzen 7000 Series processor-based system. While it offers a more budget-friendly alternative to high-end motherboards, it doesn't compromise on essential features and performance, making it an excellent choice for budget-conscious users. This motherboard supports DDR5 memory, offering enhanced data transfer speeds for improved multitasking and overall system performance. It features two DIMM slots and supports a range of memory speeds, including overclocked options up to 6400 MT/s. With dual-channel memory architecture, you can expect smooth and responsive performance for a variety of computing tasks. It also supports AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules, allowing enthusiasts to fine-tune their system's memory performance. The maximum memory capacity is 96GB, ensuring ample memory for most applications. The A620M S2H comes equipped with integrated graphics, featuring a D-Sub port, a DisplayPort, and an HDMI port. This allows for flexible connectivity to a wide range of display devices, with support for resolutions up to 4096x2160@60 Hz, ensuring that your visual content looks great. The motherboard supports AMD Socket AM5, providing compatibility with AMD Ryzen 7000 Series Processors, which deliver impressive CPU performance. It is powered by the AMD A620 chipset, offering a reliable and stable foundation for your system. The Micro ATX Form Factor of the motherboard is ideal for compact PC builds. It measures 23.0cm x 22.5cm, allowing you to create a smaller system without sacrificing key features. Connectivity options include USB 3.2 Gen 1 and USB 2.0/1.1 ports for various peripherals. It features Realtek GbE LAN for reliable network connections, and the M.2 connector and SATA ports allow for storage expansion. RAID support for both NVMe SSD and SATA storage devices is available, ensuring data redundancy and improved performance.
GIGABYTE A620M S2H DDR5 Motherboard Features
- DDR5 Memory Support: The motherboard supports DDR5 memory with speeds of up to 6400 MT/s when overclocked. It features two DIMM slots, enabling a maximum memory capacity of 96GB. Dual-channel memory architecture ensures efficient data transfer and system responsiveness.
- Integrated Graphics: The motherboard features an Integrated Graphics Processor with multiple display options, including a D-Sub port (max resolution 1920x1200@60 Hz), a DisplayPort (max resolution 3840x2160@144 Hz), and an HDMI port (max resolution 4096x2160@60 Hz). This provides flexibility for connecting various display devices.
- CPU Support and Chipset: It supports AMD Socket AM5 and is compatible with AMD Ryzen 7000 Series Processors. The motherboard is powered by the AMD A620 chipset, providing a stable platform for your system.
- BIOS and Audio: The motherboard features a 256 Mbit flash with a licensed AMI UEFI BIOS, complying with various industry standards. The Realtek Audio CODEC provides high-definition audio with support for 2/4/5.1/7.1-channel audio setups.
- Compact Form Factor: With a Micro ATX Form Factor measuring 23.0cm x 22.5cm, it's ideal for smaller PC builds where space is a consideration.
- Expansion Slots: It includes a PCIe 4.0 x16 slot on the CPU side and a PCIe 3.0 x1 slot on the chipset side, accommodating graphics cards and other expansion cards.

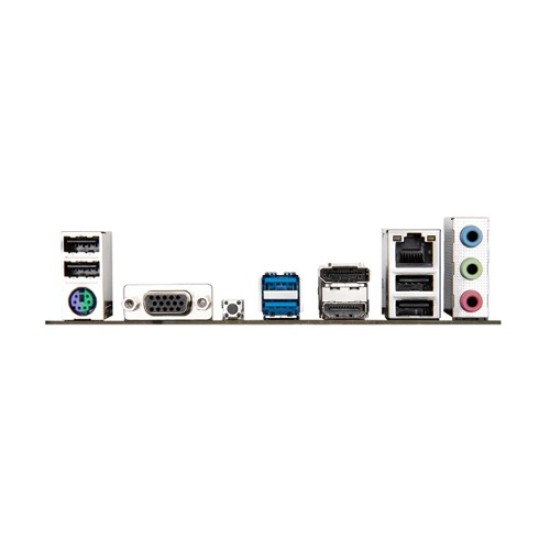

- Connectivity and Ports: The motherboard offers a range of USB ports, including two USB 3.2 Gen 1 ports and one USB 2.0/1.1 port on the back panel. Additionally, the chipset provides two internal USB 3.2 Gen 1 ports and seven internal USB 2.0/1.1 ports, ensuring ample connectivity for peripherals. It also features a Realtek GbE LAN chip for reliable network connections.
- Storage Solutions: It includes an M.2 connector for PCIe 4.0 x4/x2 SSD support on the CPU side and four SATA 6Gb/s connectors on the chipset side. RAID support is available for both NVMe SSD and SATA storage devices, allowing for data redundancy and improved storage performance.
- Internal I/O Ports: The motherboard provides various internal connectors, including fan headers, LED strip headers, and USB headers for customization and expandability.
- TPM Header: It features a Trusted Platform Module header for enhanced system security.
- Special Features: The motherboard supports GIGABYTE Control Center (GCC) for advanced system management and Q-Flash for easy BIOS updates. Additionally, it offers Q-Flash Plus for hassle-free BIOS updating without the need for a CPU or memory.
- Bundled Software: Included in the package is Norton Internet Security (OEM version) and LAN bandwidth management software to enhance system security and network performance.
- Warranty: Backed by a 3-year warranty, this motherboard offers reliability and assurance.
