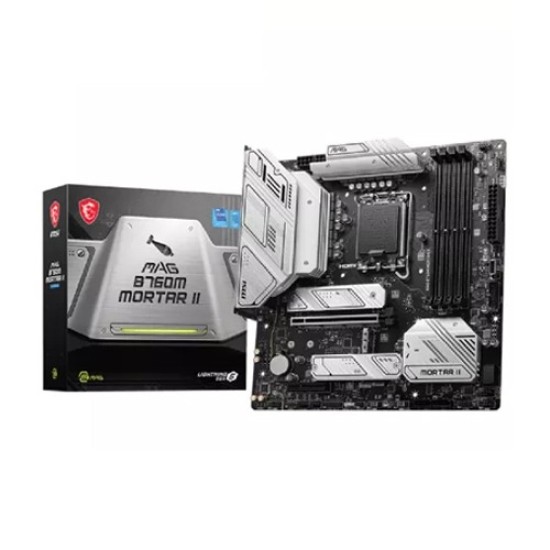

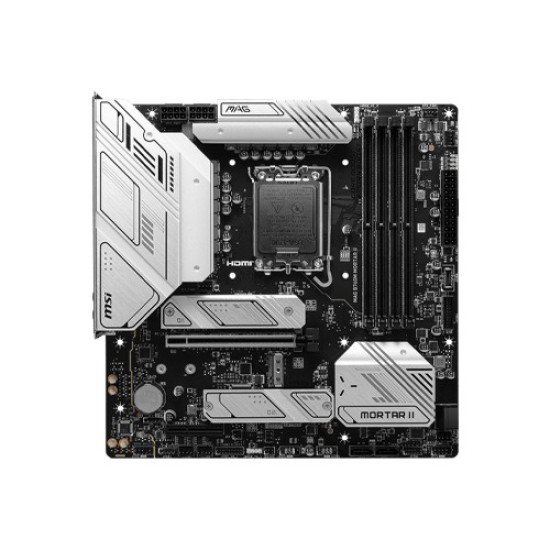

MSI MAG B760M MORTAR II DDR5 mATX Motherboard
The MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a high-performance motherboard designed to support Intel's 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors, featuring the LGA1700 socket. This motherboard is equipped with the Intel B760 chipset, which ensures reliable and efficient performance for a wide range of computing tasks. One of the standout features of this motherboard is its support for DDR5 memory, with four slots that can accommodate memory speeds of up to 7800MHz and a maximum capacity of 192GB. It also supports Intel® Extreme Memory Profile, providing flexibility for memory overclocking. In terms of graphics, the MSI MAG B760M MORTAR II offers a comprehensive solution with an HDMI 2.1 port capable of delivering 4K resolution at 60Hz and a DisplayPort 1.4 for another 4K 60Hz display option. This motherboard is well-suited for gaming and multimedia applications. Connectivity options are plentiful, with a variety of USB ports, including USB 2.0 and USB 3.2 Gen1 Type A on both the rear and front panels. It also boasts USB 3.2 Gen2 Type A and Type C ports for high-speed data transfer. The Realtek 2.5Gbps LAN port ensures fast and stable internet connectivity, making it an excellent choice for online gaming and streaming. Storage capabilities are versatile, thanks to three M.2 slots that support PCIe 4.0 x4 for high-speed SSDs. Additionally, there are four SATA 6G ports, and the motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard offers numerous internal I/O ports, including multiple fan connectors, RGB LED connectors, and USB headers, providing flexibility for customizing your PC build. It also includes TPM (Trusted Platform Module) support for enhanced security. With a compact micro-ATX form factor measuring 243.84mmx243.84mm, the MSI MAG B760M MORTAR II is suitable for smaller PC cases while still delivering a rich feature set. It's compatible with Windows 11 64-bit and Windows 10 64-bit, making it future-proof for modern operating systems.
MSI MAG B760M MORTAR II Motherboard Features
- Processor Compatibility: This motherboard supports a wide range of Intel processors, including Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors. The LGA1700 socket ensures compatibility with the latest generation CPUs.
- DDR5 Memory Support: The motherboard supports DDR5 memory, offering four memory slots with the ability to reach impressive speeds of up to 7800MHz (when overclocked). It supports a maximum memory capacity of 192GB, making it ideal for multitasking and memory-intensive applications.
- High-Quality Audio: With the Realtek ALC897 Codec, the motherboard provides 7.1-channel high-definition audio for an immersive audio experience. It also supports S/PDIF output for high-quality digital audio connectivity.
- Graphics Capabilities: The motherboard features HDMI 2.1 and DisplayPort 1.4 connectors, supporting 4K resolution at 60Hz with HDR, delivering stunning visuals for gaming and multimedia.
- Expansion Slots: It comes with a PCI-E X16 slot that supports X16/X4, offering flexibility for adding a graphics card or other expansion cards.

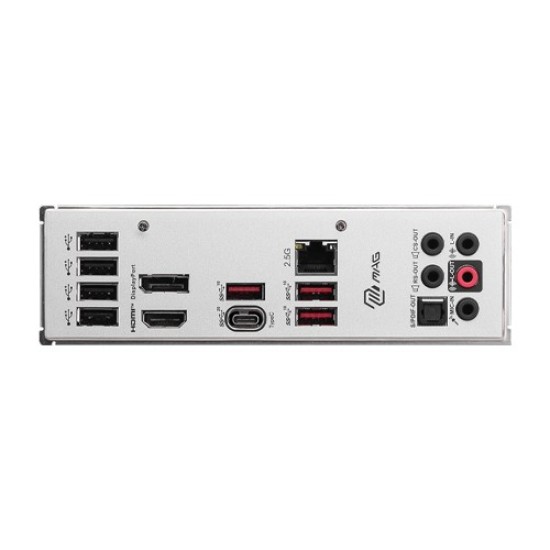

- Connectivity: The motherboard offers a variety of USB ports, including USB 2.0 and USB 3.2 Gen1 on both the rear and front panels. It also features USB 3.2 Gen2 Type A and Type C ports for high-speed data transfer. The Realtek 2.5Gbps LAN port ensures fast and reliable internet connectivity.
- Storage Options: With three M.2 slots, this motherboard provides fast and flexible storage options, supporting PCIe 4.0 X4 and accommodating 2280/2260/2242 devices. Additionally, it offers four SATA 6G ports and supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.
- Compact Form Factor: The micro-ATX form factor of 243.84mmx243.84mm makes it suitable for smaller PC cases while still delivering a rich feature set.
- Support for Windows 11: This motherboard is compatible with Windows 11 64-bit, ensuring readiness for the latest operating system.
- Special Features: The MSI MAG B760M MORTAR II comes with special features like EZ Debug LED, which aids in troubleshooting during the system setup.
- Trusted Platform Module (TPM) Support: For enhanced security, the motherboard features TPM 2.0 support, which is crucial for safeguarding sensitive data.
Overall, the MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a well-rounded and feature-packed motherboard that caters to both gamers and power users, with its robust performance, extensive connectivity options, and support for the latest DDR5 memory technology. Its 3-year warranty ensures peace of mind, making it a compelling choice for your next PC build.
